Linear drains
Wiper VF linear drain for vinyl floors
A stainless steel linear drain with a clamping frame that locks sheet vinyl to the drain. It goes wherever the room needs it, and your fitter forms the falls towards it.
The Wiper VF at a glance
Supplied as a complete set with its clamping frame, grating, waste trap, sealing membrane and fixings. Adjustable legs are offered as an option.
- Channel
- 30 × 78 mm
- Overall width
- 160 mm
- Material
- Grade 304 stainless steel, brushed
- Lengths
- 500 to 1200 mm
- Grates
- Ponente, Mistral, Sirocco
- Waste traps
- Six, McAlpine HC26-50 as standard
- Cleaning
- From above, the grating lifts out
- Guarantee
- 10 years, 25 with the waterproofing kit
Sold and delivered by Wetrooms Design.
Lengths
Eight lengths, three grates
Every length is made with each of the three grates. Pick a grate to go straight to that drain at Wetrooms Design, where you choose the waste trap and the legs.
Bars are drawn to one scale, against the 1200 mm drain.

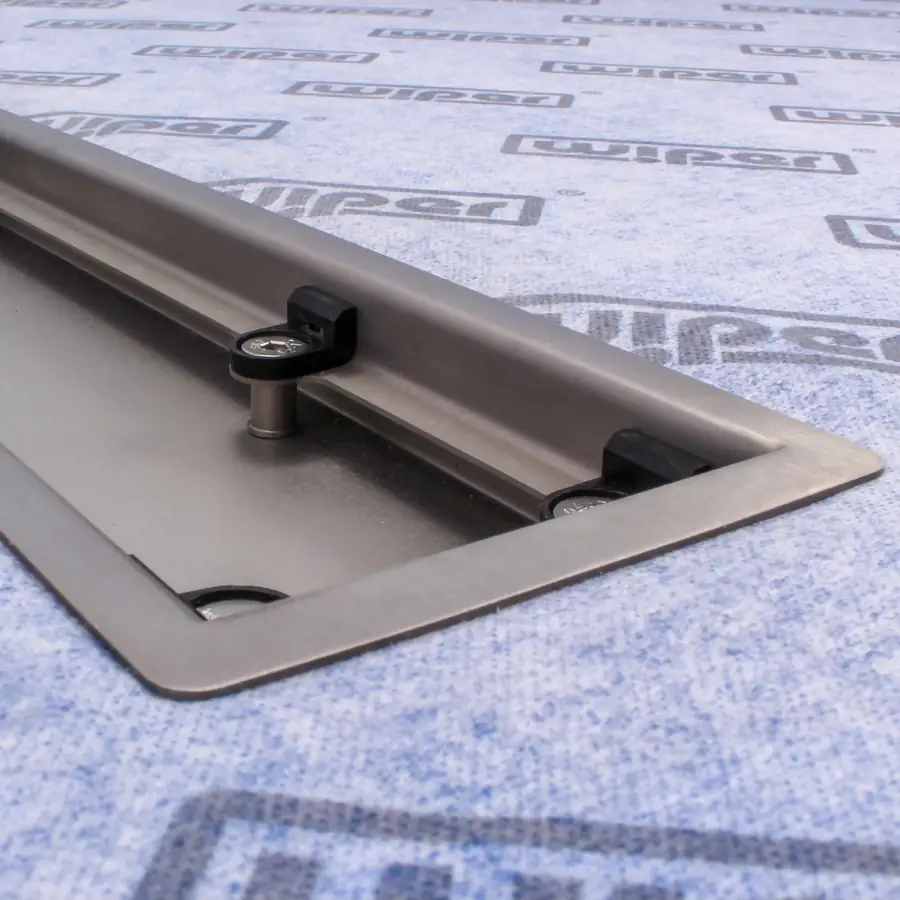

The drain
What the Wiper VF gives you
-
Mechanical clamping frame
Screwed down over the vinyl, it seals the edge and holds it in place so it cannot lift or peel back.
-
Grade 304 stainless steel
A brushed stainless steel channel, 30 mm high and 78 mm wide, 160 mm across including the flange.
-
Kind to the vinyl edge
The frame is contoured to reduce premature wear on the vinyl where it meets the drain.
-
Six waste trap options
From the 46 mm H+M Snake for shallow floors to the vertical McAlpine V50 for getting past joists.
-
Cleaned from above
Lift the grating with the hook that comes with it and the trap is right there to clean.
-
Goes anywhere
No tray to work around. The drain can go wherever the design needs it, with the falls formed towards it.
Grates
Three grates, one drain
All three fit the same drain and share the same technical properties, so choose the one you like the look of. Each is brushed stainless steel and lifts out for cleaning.
-
Ponente

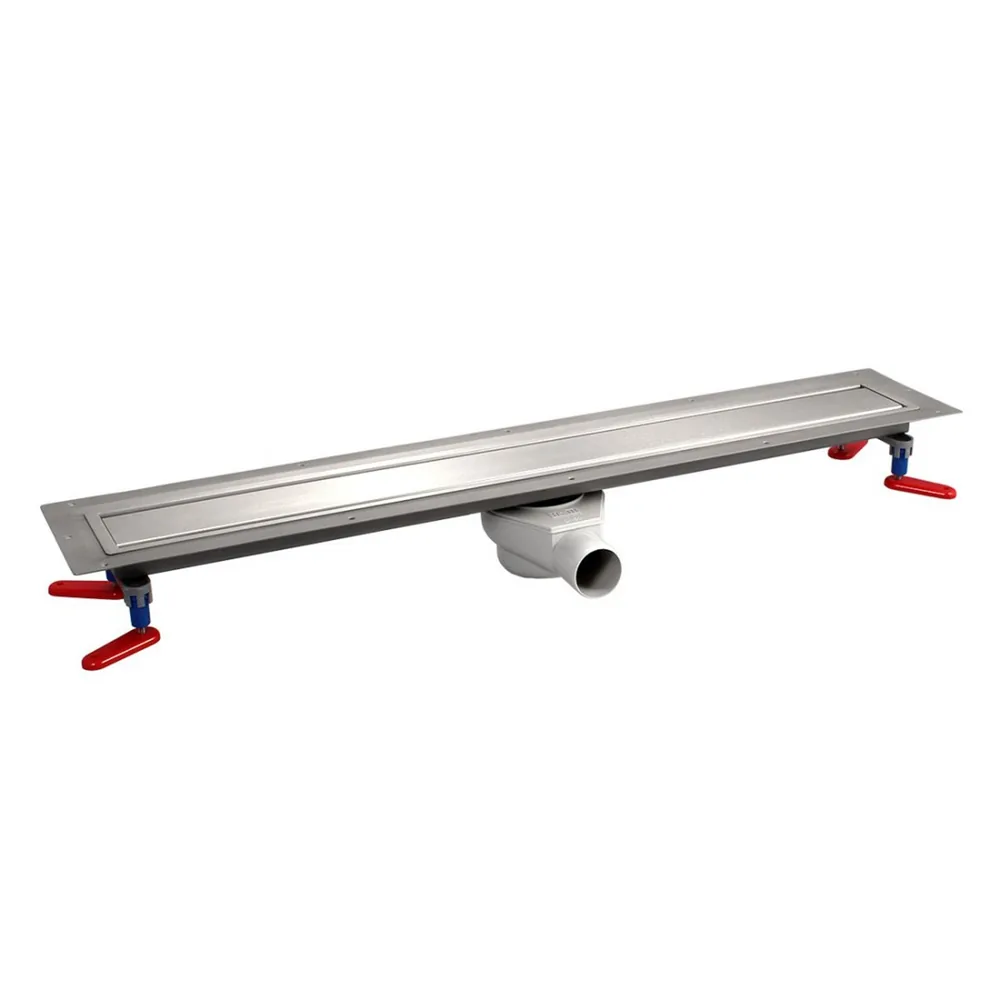

A plain, unbroken steel top.
-
Mistral

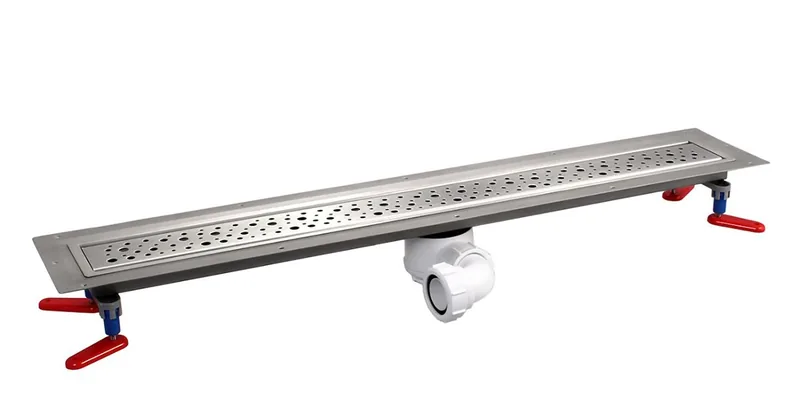

Round perforations in mixed sizes.
-
Sirocco

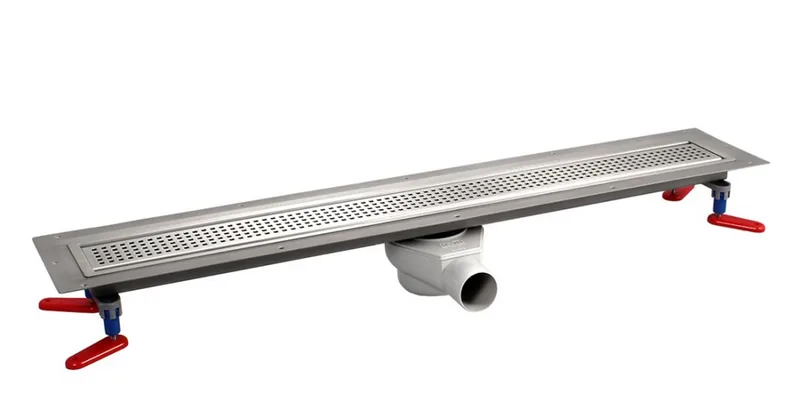

Rows of small square perforations.
Waste traps
Pick the trap for your floor depth
Every drain ships with a McAlpine HC26-50 unless you pick another trap at checkout. Pick by the depth under the floor first, then by flow.
| Trap | Height | Flow | Seal depth | When to pick it |
|---|---|---|---|---|
| McAlpine HC26-50 (supplied) | 68 mm | 26 l/min | 20 mm | Normal floor depth, 1.5 inch UK waste pipe |
| H+M Drop 35 | 63 mm | 48 l/min | 35 mm | Low floor, but you still want high flow |
| H+M Drop 50 | 78 mm | 48 l/min | 50 mm | You need a 50 mm seal (DIN EN 1253) |
| H+M Snake | 46 mm | 36 l/min | 25 mm | The shallowest floors |
| H+M Snake 360 | 50 mm | 32 l/min | 25 mm | Shallow floor, awkward pipe route |
| McAlpine Vertical V50 | 132 mm | 52 l/min | 25 mm | The waste has to drop straight down past joists |
Heights, flows and seals as listed by Wetrooms Design for each trap. Ask the team for the total installation depth of your drain and trap together.
What you get
What comes with the drain
Each Wiper VF drain is supplied as a complete set, with fitting instructions:
- stainless steel drain body with its flange
- clamping frame and fixing screws
- your chosen grating, with a lifting hook
- sealing membrane
- your chosen waste trap
Adjustable legs for setting the height are offered as an option. Waterproofing is not in the box: the Wiper waterproofing kit is a separate item. Wiper guarantees the drain for 10 years, or 25 years when you buy the kit with it.
Order the Wiper VF drain
Choose the length, grate and waste trap at Wetrooms Design, or call the team to check what suits your floor.
