Wet room trays

Showerlay VF wet room trays for vinyl

A ready-made shower floor for sheet vinyl. The falls are cut into the tray at the factory and the Wiper VF clamp drain is already built in and waterproofed.

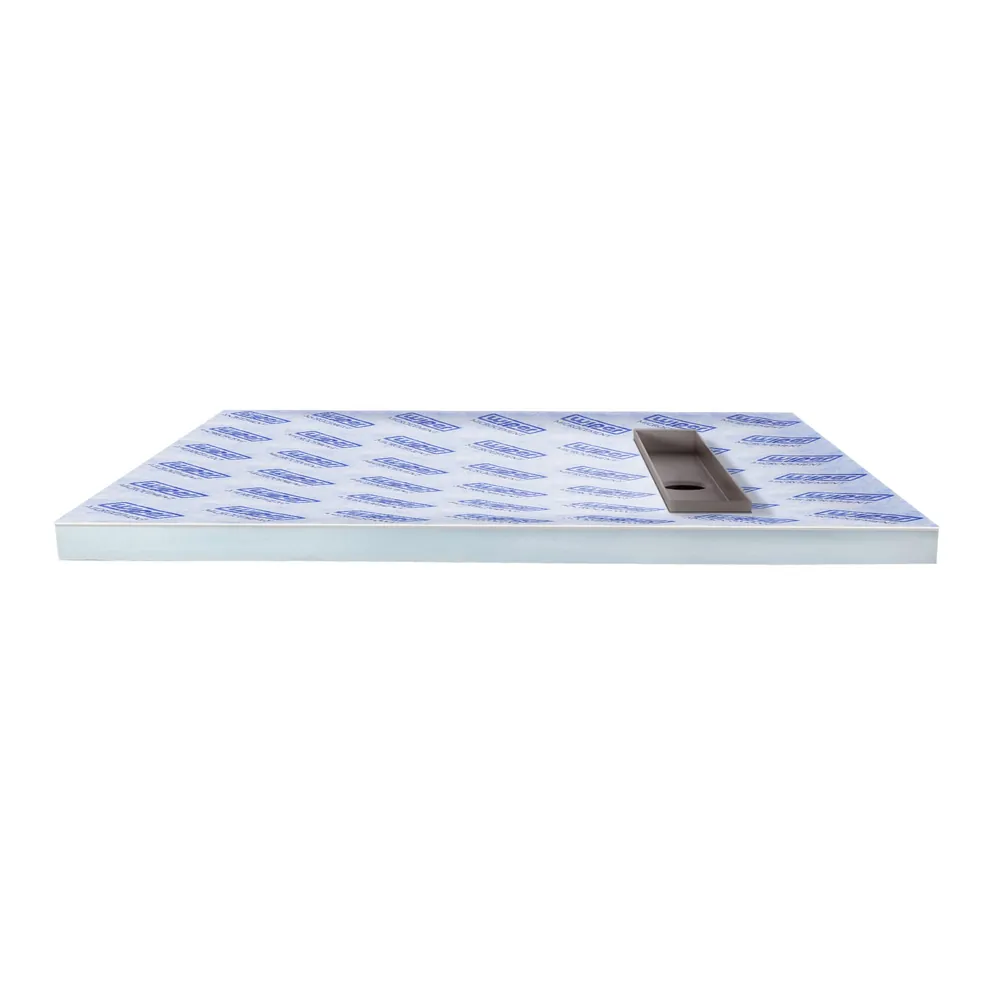

Showerlay VF wet room tray with its built-in linear clamp drain

The Showerlay VF at a glance

An XPS foam board, reinforced with cement-based glue, fibreglass mesh and a waterproof membrane fabric that gives the vinyl a durable surface to bond to.

Board: XPS foam
Fall: 2% from every corner to the drain
Thickness: 20, 28 or 35 mm
Sizes: 14, from 800 × 800 to 900 × 1850 mm
Trimming: Up to 50 mm on each side
Drain: Wiper VF clamp drain, built in
Grates: Ponente, Mistral or Sirocco
Waste traps: Five, McAlpine HC26-50 as standard
Floors: Timber or concrete

See sizes and prices

Sold and delivered by Wetrooms Design.

Sizes

Fourteen sizes, drawn to scale

Every tray is drawn to the same scale, with the falls running from each corner to the built-in drain. The drain runs parallel to the shorter edge, 150 mm in from it. Each size comes 20, 28 or 35 mm thick, with a choice of three grates.

800 × 800 mm500 mm drain 0.64 m² Ponente Mistral Sirocco
900 × 900 mm600 mm drain 0.81 m² Ponente Mistral Sirocco
800 × 1200 mm500 mm drain 0.96 m² Ponente Mistral Sirocco
1000 × 1000 mm700 mm drain 1.00 m² Ponente Mistral Sirocco
900 × 1200 mm600 mm drain · best seller 1.08 m² Ponente Mistral Sirocco
1000 × 1200 mm700 mm drain 1.20 m² Ponente Mistral Sirocco

8 more sizesShow fewer

800 × 1500 mm500 mm drain 1.20 m² Ponente Mistral Sirocco
900 × 1400 mm600 mm drain 1.26 m² Ponente Mistral Sirocco
900 × 1500 mm600 mm drain 1.35 m² Ponente Mistral Sirocco
1200 × 1200 mm900 mm drain 1.44 m² Ponente Mistral Sirocco
900 × 1600 mm600 mm drain 1.44 m² Ponente Mistral Sirocco
1000 × 1500 mm700 mm drain 1.50 m² Ponente Mistral Sirocco
900 × 1700 mm600 mm drain 1.53 m² Ponente Mistral Sirocco
900 × 1850 mm600 mm drain 1.67 m² Ponente Mistral Sirocco

Drawn from the Wiper technical drawing for each size. Choose the thickness and waste trap on the product page.

Need another size? Order a bespoke tray

Thickness

Three thicknesses for every size

Each size comes 20, 28 or 35 mm thick, chosen on the product page.

On a timber floor the tray takes the place of the floorboards, so match it to them: standard boards are 20 mm, and thicker boards call for a thicker tray.

Cut sections of the Showerlay tray board at 20, 28 and 35 mm thick

Why a tray

What the tray does for you

The falls are made for you

The board is CNC-cut to a 2% fall from each corner to the drain, so nobody has to form falls in a screed.
A surface made for vinyl

The top is reinforced with a waterproof membrane fabric, making it durable enough for vinyl sheets or planks.
The clamp drain is already in

The Wiper VF drain is built in and waterproofed during manufacture, clamping frame and all.
Light but strong

XPS foam is easy to carry and cut, and strong enough for a vinyl floor covering.
Trimmed on site

Cut it down by up to 50 mm on each side to get round pipe boxing or uneven walls. Trim both sides equally to keep the falls.
Insulating

The foam board adds thermal and acoustic insulation to the floor.

Good to know

Underfloor heating and the drain

The tray is compatible with underfloor heating, with one catch: because the foam insulates, heating laid underneath the tray will warm the shower area less. Thin underfloor heating can go on top of the tray instead, within the allowance for materials laid over it.

Every tray comes with your choice of Ponente, Mistral or Sirocco grate. The standard waste trap is the McAlpine HC26-50, with a 1.5 inch outlet that turns a full 360° to line up with the pipework under the floor. The H+M Drop 35, Drop 50 and Snake 360 and the McAlpine Vertical V50 can be chosen instead.

How the tray is fitted
